OCTO BioChurn Reactor INT

Regular price $311.00

In Stock

FREE Delivery over $100

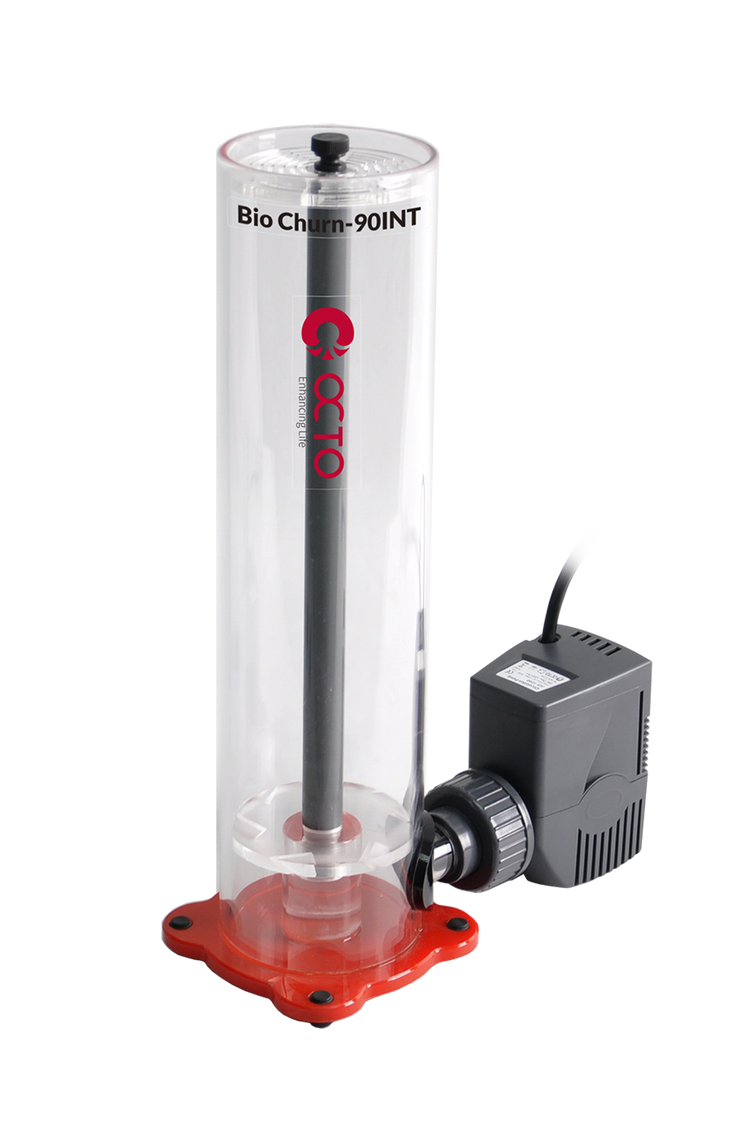

Bio Churn-90INT

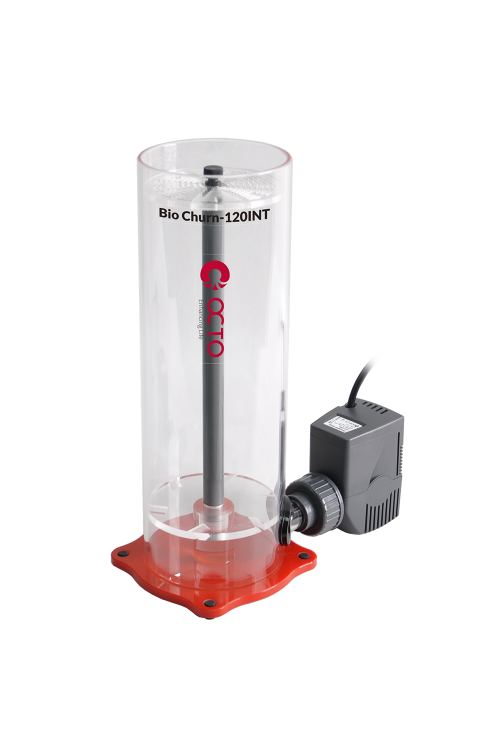

Bio Churn-120INT

SKU: ROCTO-00093

Features & Benefits

Equipped with Feed Pump
Churn Style Fluidization
Cascading Output
Easy to Maintain Upper Containment Plate
Solid Acrylic Construction

Overview

Our Bio Churn reactors are for those that demand the ultimate control over your Bio pellets solid carbon dosing. The superior “Churn” Style” design easily fluidizes large amounts of bio pellet media without blasting it with outrageous flow just to fluidize the media, which is a commonly found on other Bio Pellet reactors in the market today.

The unique motion these innovative reactors produce allow for much greater suspension of the media in a cyclone “churn” style motion created with our patent pending churn plate. Equipped with our very own Aquatrance recirculation pumps which features independent flow valves, so the user can independently control the flow of media within the reactor.

Our Bio Churn Reactors come in four Series including the in-sump, External/Recirculating and the Commercial line. For the ultimate control of PO4 & NO3 look no further than the Bio Churn.

Technical Data

1. Bio Churn Reactor

Product	Wet/Dry	Pump Power		Diameter		Footprint				Height		Max Bio Sphere		Tank Volume
		50HZ	60HZ	mm	inch	mm		inch		mm	inch	L	US Gal	L	US Gal
		W	W
Bio Churn-90INT	Wet	6	7	90	3.5	220	115	8.7	4.5	390	15.40	0.40	0.11	400	106
Bio Churn-120INT	Wet	10	15	120	4.7	250	145	9.9	5.7	390	15.40	0.70	0.18	700	185

2. Circulation Pump

Product	Model No.	Wet/Dry	Power		Max Head Height				Maximum Flow Rate
			50HZ	60HZ	50HZ		60HZ		50HZ		60HZ
			W	W	m	Ft.	m	Ft.	LPH	GPH	LPH	GPH
Bio Churn-90INT	AQ-800	Both	6	7	0.8	2.6	0.9	3.0	880	232	908	240
Bio Churn-120INT	AQ-1200	Both	10	15	1.1	3.6	1.3	4.3	1300	343	1287	340
