REEF FACTORY Base Pump

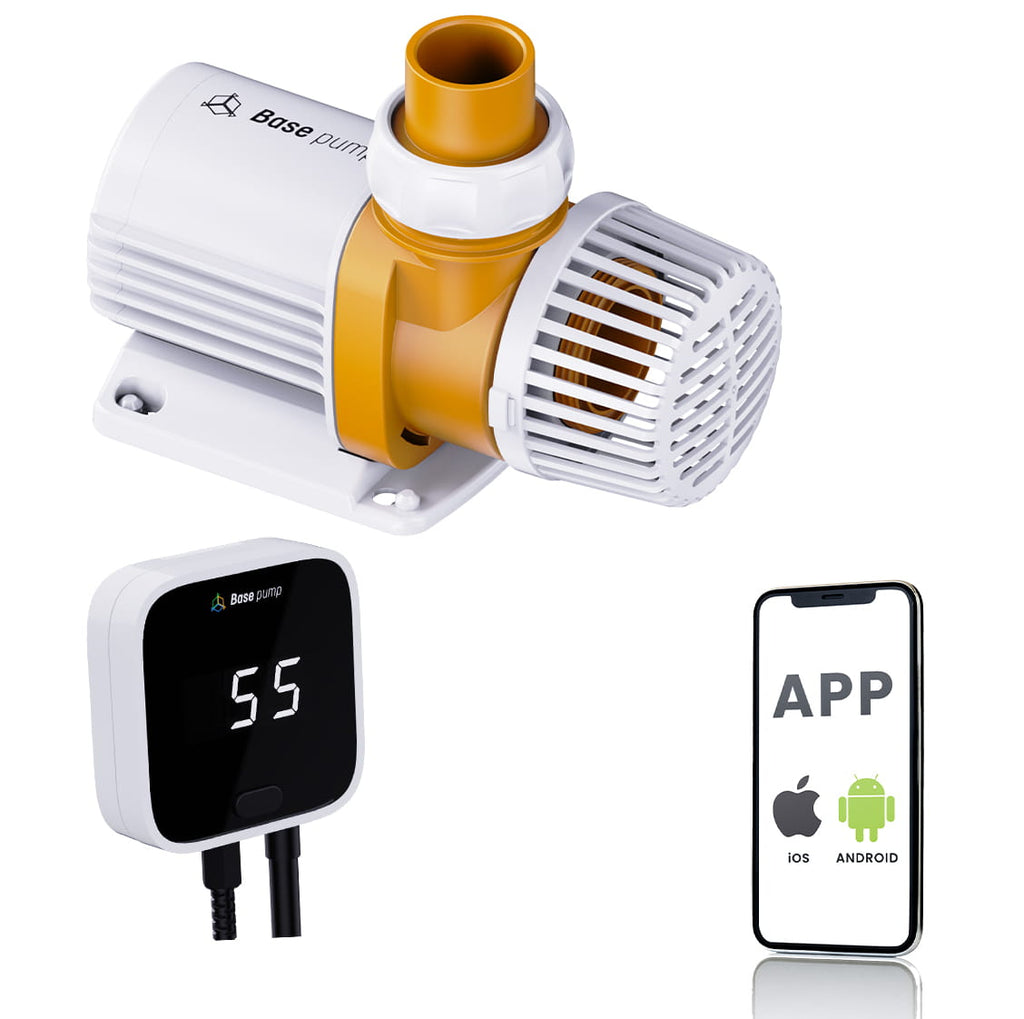

Reef Factory Base Pumps includes a separate display that shows the power and flow rate in real time

New device from Reef Factory. Base pump, together with as many as 19 other devices, creates an ecosystem that allows remote management of a marine aquarium from the Smart Reef application. More devices are coming soon, together they will create a complete set that fully covers the needs of every marine aquarist.

Base pump is a high-efficiency return pump with Smart technology. Very quiet operation and full control via the newly redesigned control panel. Modern, minimalist design. The set includes a separate display that shows the power and flow rate in real time.

Key features

• managed remotely via the Smart Reef app
• high energy efficiency
• quiet operation
• clean, modern design
• separate display showing flow rate and power
• automatic stop of operation when the water level is too low (the app will send a PUSH notification to inform the user)

All you need to control the Base pump is the free Smart Reef app. You can install it on your mobile device (Android, iOS) or operate from a browser. Pair Base pump with your Smart Reef account to enjoy a wide range of smart features.

Smart features:

• free, user-friendly Smart Reef app for Android, iOS or PC (browser support)
• a completely new interface that allows for quick and easy setup
• remote control in a dedicated panel of the Smart Reef application
• adjustable flow rate
• remote on and off
• PUSH notifications on a mobile device
• feeding mode – the ability to remotely stop the pump for the time of feeding and program after what time it should turn back on
• separate display showing power and flow rate
• remote switching on and off of the display and its additional backlight

Additional features:

• rubber feet for easy installation of the pump in the tank
• DIN rail on the back of the display, for quick hanging in the selected place
• high-performance, reliable power supply

Smart Reef +

Reef Factory offers many Smart products designed for easy and convenient management of a marine aquarium. Build your own system based on Smart devices and control them from one user-friendly application!

BASE PUMP 5000

TECH SPECS

Flow rate 5000 l/h, recommended for aquariums up to 500 liters, maximum lifting of the water column up to 4 m (13.2 ft), power consumption 40W, dimensions 16 x 10 x 13 cm (7 x 4 x 6 in)

Power specification:

Supply voltage 110-230V AC 50/60Hz,24V DC

IPX8 water resistance of the pump

The set includes:

Base pump device

24V 5, 25A 126W power adapter

power cord

instruction

connection – hose: 20 mm (0.8in), 25mm (1 in), 32mm (1.3 in), 38mm (1.5 in)

connection – pipe: 25mm (1 in), 32mm (1.3 in), 40mm (1.6 in)

nuts 2 pcs.

o-rings 2 pcs.

BASE PUMP 8000

TECH SPECS

Flow rate 8000 l/h, recommended for aquariums up to 800 liters, maximum lifting of the water column up to 5.5 m (18.1 ft), power consumption 65W, dimensions 16 x 10 x 13 cm (7 x 4 x 6 in)

Power specification:

Supply voltage 110-230V AC 50/60Hz, 24V DC

IPX8 water resistance of the pump

The set includes:

Base pump device

24V 5, 25A 126W power adapter

power cord

instruction

connection – hose: 20 mm (0.8in), 25mm (1 in), 32mm (1.3 in), 38mm (1.5 in)

connection – pipe: 25mm (1 in), 32mm (1.3 in), 40mm (1.6 in)

nuts 2 pcs.

o-rings 2 pcs.

BASE PUMP 10000

TECH SPECS

Flow rate 10000 l/h, recommended for aquariums up to 1000 liters, maximum lifting of the water column up to 6 m (20 ft), power consumption 80W, dimensions 16 x 10 x 13 cm (7 x 4 x 6 in)

Power specification:

Supply voltage 110-230V AC 50/60Hz, 24V DC

IPX8 water resistance of the pump

The set includes:

Base pump device

24V 5, 25A 126W power adapter

power cord

instruction

connection – hose: 20 mm (0.8in), 25mm (1 in), 32mm (1.3 in), 38mm (1.5 in)

connection – pipe: 25mm (1 in), 32mm (1.3 in), 40mm (1.6 in)

nuts 2 pcs.

o-rings 2 pcs.

BASE PUMP 13000

TECH SPECS

Flow rate 13000 l/h, recommended for aquariums up to 1300 liters, maximum lifting of the water column up to 6,5 m (22 ft), power consumption 95W, dimensions 19 x 13 x 16 cm (8 x 6 x 7 in)

Power specification:

Supply voltage 110-230V AC 50/60Hz, 24V DC

IPX8 water resistance of the pump

The set includes:

Base pump device

24V 5, 25A 126W power adapter

power cord

instruction

connection – hose: 32mm (1.3 in), 38mm (1.5 in), 50mm (2 in)

connection – pipe: 40mm (1.6 in), 50mm (2 in)

nuts 2 pcs.

o-rings 2 pcs.
